Bondtech BMG Reverse Set for HextrudORT

Bondtech BMG Reverse Set for HextrudORT

Original Bondtech OEM set of parts to use on the HextrudORT from the HevORT project (not suitable for Voron Stealthburner or Mini Stealthburner!)

Includes a set with the Hardened Steel R.I.D.G.A. and BMG original 1.75mm secondary Drive Gear.

• Precision cnc-machined
• Sharp teeth for maximum grip on the filament
• The perfect choice for a high-performance feeding system
• Extremely high wear resistance for use with abrasive filaments

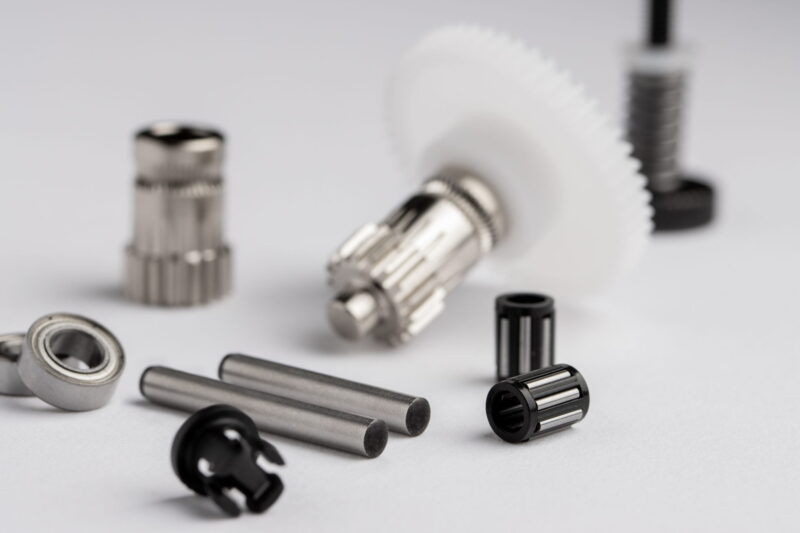

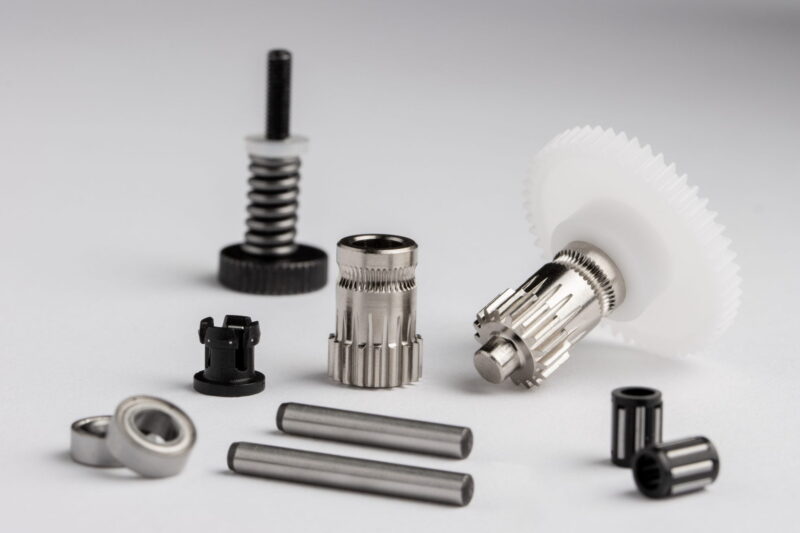

What is included

• 1x R.I.D.G.A. – BMG Reverse Integrated Drive Gear Assembly
• 1x 1.75/5.0mm BMG Secondary Drive Gear
• with integrated needle bearings and one 3×20 mm shaft
• 1x 3×24 mm shaft
• 1x Thumbscrew Assembly
• 1x 4 mm Push-fit Collar
• 2x 4x8x3 Ball Bearing

Technical Specification

• Shaft length: 27 -0/+0.05
• Shaft length to support ball bearings : < 3mm – 3mm >
• Filament teeth’s center to end of shaft : < 14mm – 13mm >
• Number of drive gear teeth : 17
• Drive gear teeth length : 4mm
• Mainshaft/drive gear Material: Hardened Steel
• Materials Compatibility:
  Flexible : yes;
  Rigid : yes;
  Abrasive : yes.
• Number of main gear teeth : 50
• Main gear teeth length : 3mm
