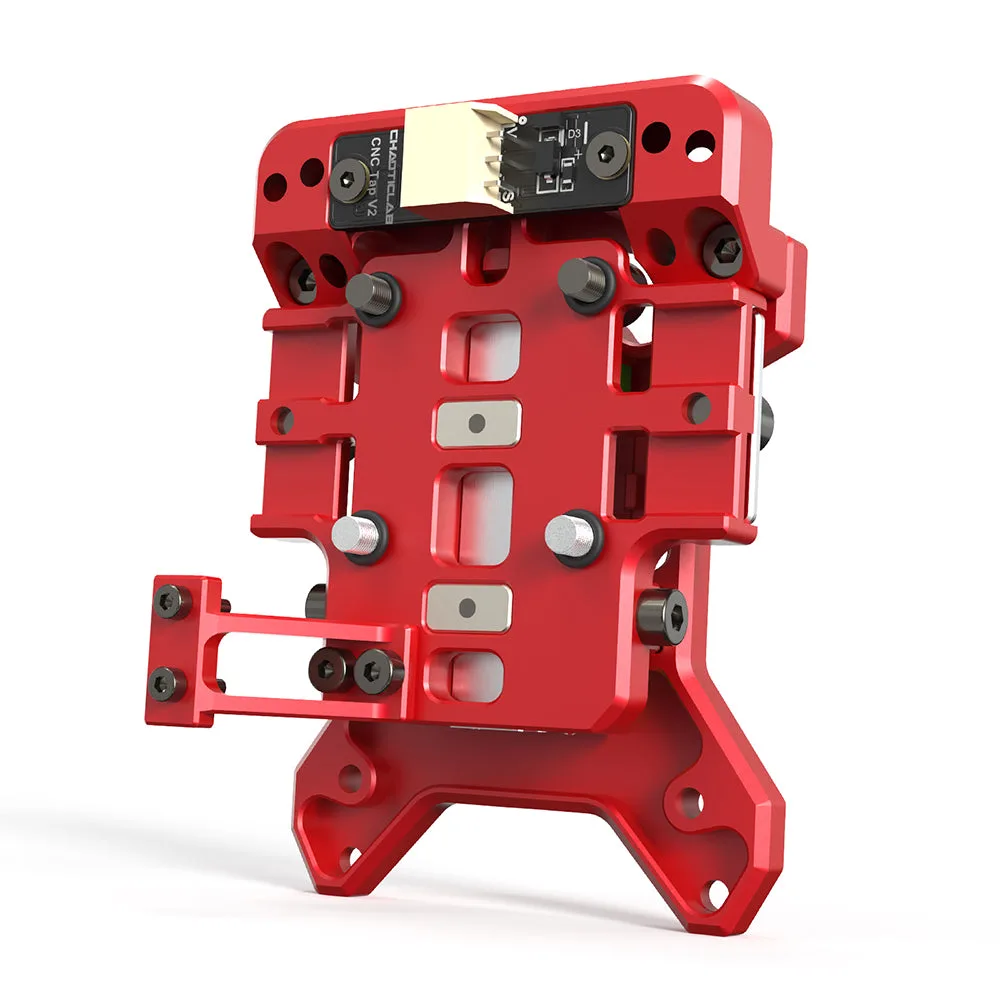

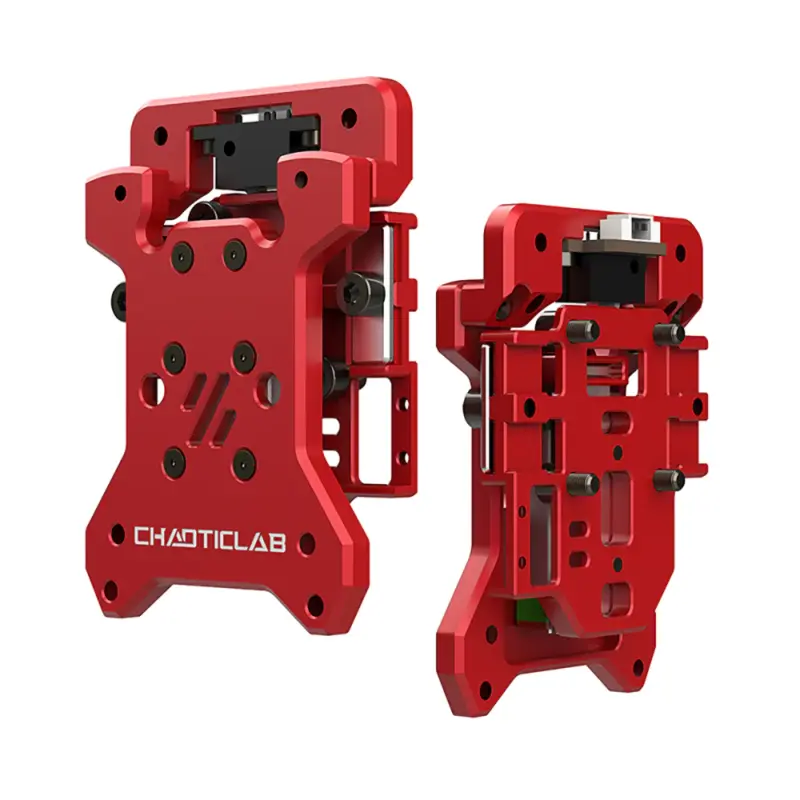

Chaoticlab CNC Voron Tap (V2.0)

• Multi Axis CNC machined. Lighter (59.8g) and smaller (45mm*13mm*68mm).
• Full Al6061 T6 aluminium construction. Enhanced wear & high-temperature resistance.
• Unmatched stability and reliability.
• Designed for VORON V2.4 R1&R2 and VORON Trident

NOTE: The CNC Tap is shipped with a special oil that prevents corrosion. We recommend cleaning this oil and applying your choice of lubricant after you receive it. No disassembly is required to do this. Follow the instructions in the build guide.

CNC Voron Tap Specifics:

1. Product brief introduction

• Ultra-high precision: 0.4μm (0.0004mm)
• Material: All Al6061 T6 aluminium structure. Enhance wear resistance and high-temperature resistance
• Size: 45mm*13mm*68mm
• Ultra Light body: 59.8g
• 5-24V supported
• Designed for VORON V2.4 R1&R2 and VORON Trident

2. Product feature

• The effective travel of the printer will not be affected  (the printed version will reduce the Y travel by 3mm or the nozzle will hit the door)
• Omron D2FP-FN new optical microswitch. Lower noise, faster trigger, higher sensitivity and accuracy, and long service life.
• Life span: 70,000,000+ probing
• Easy installation: No need to assemble and disassemble TAP itself! (Do not disassemble by yourself, otherwise, the product may be damaged!)
• Suitable for: VORON V2.4 R1&R2 and VORON Trident printers
• Not suitable for: Switchwire, V1.8, Legacy, VORON V0.x

3. Product Files:

CNC Voron Tap Build Guide

GIT
