E3D PZ Probe™ Kit

The E3D PZ Probe™ Kit is the compact bed levelling system that comes equipped with a compatible PZ Board. This allows users to integrate contact probing into existing setups beyond the Revo ecosystem.

Whether it’s for a 3D printing application or something entirely different – this kit gives you flexibility with two different communication methods (I2C, UART) and allows for triggering on the compression or expansion of the piezoelectric element. Imagine using your PZ washer to probe with an integrated extruder, use it as an X, Y or Z probe or measure tool offsets with a tool changer!

Configuring the PZ Probe Board

The PZ Board is customisable in 5 different ways, allowing you to choose the communication device that best suits you. Various commands can be used to fine-tune the settings, which are then saved to the preset of your choice. Further details about the PZ Probe configuration and commands are available in our technical datasheet.

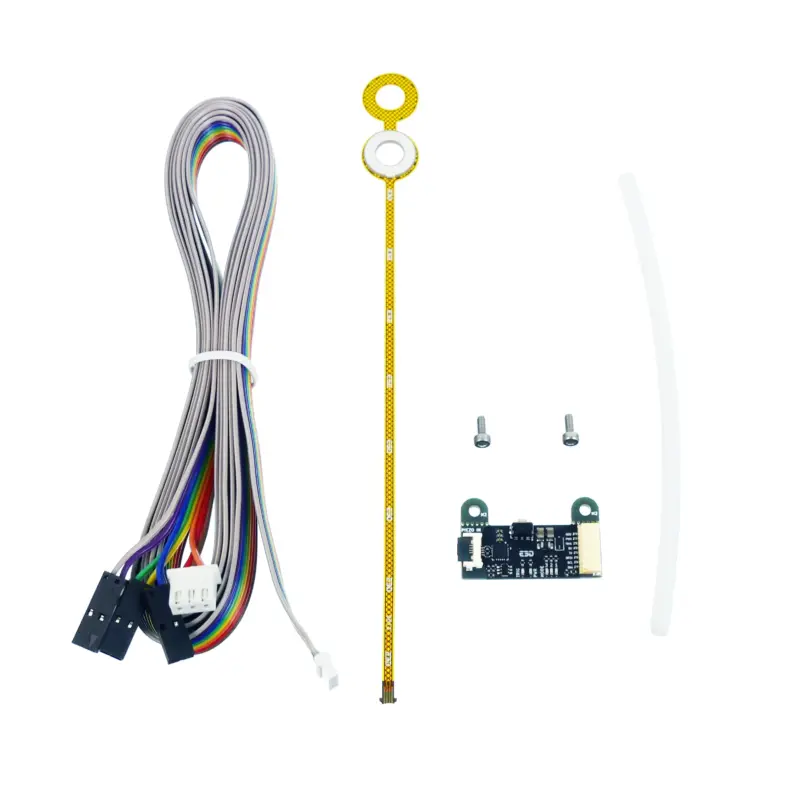

The Kit includes:

• 1 x PZ washer
• 2 x M2 Board Mounting Screws

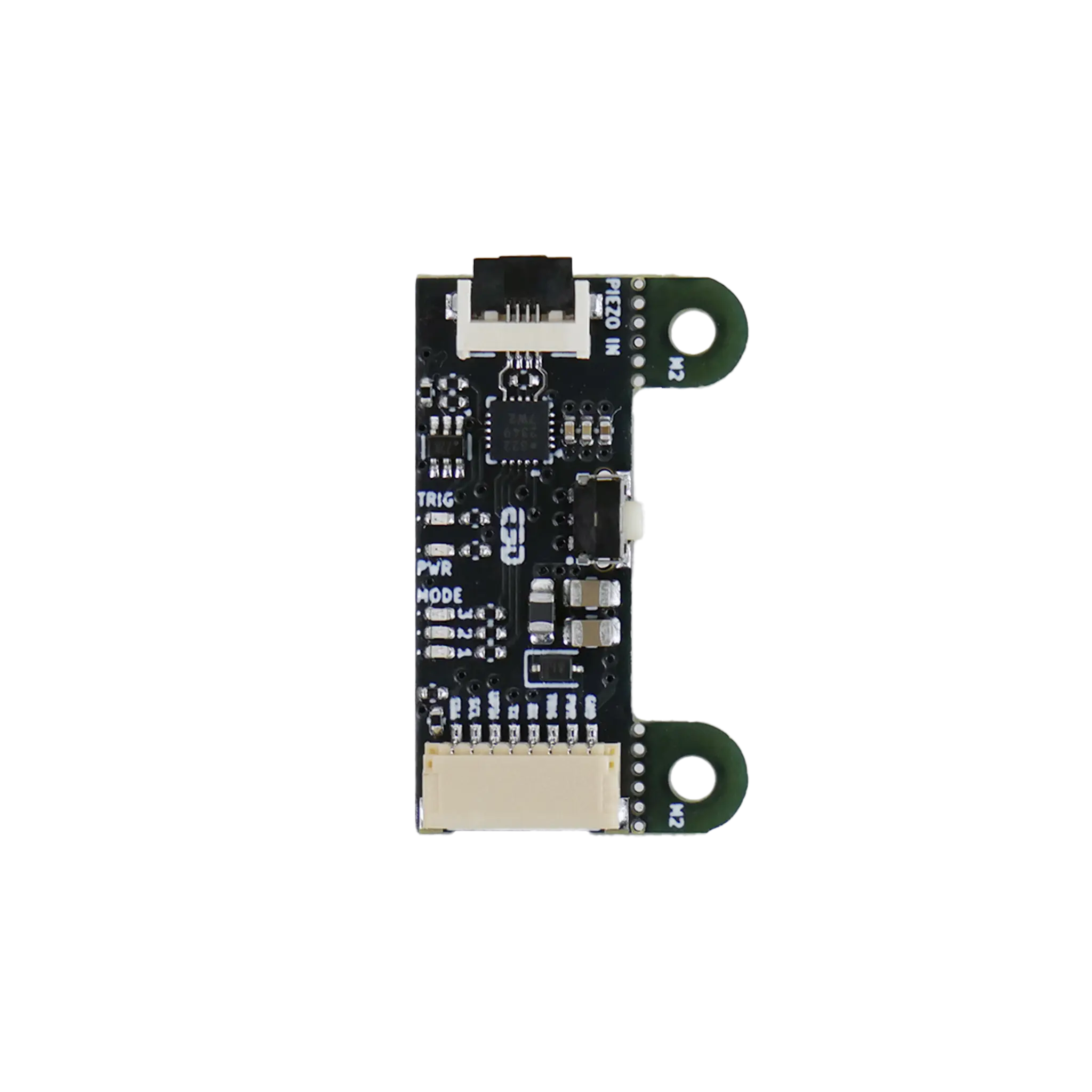

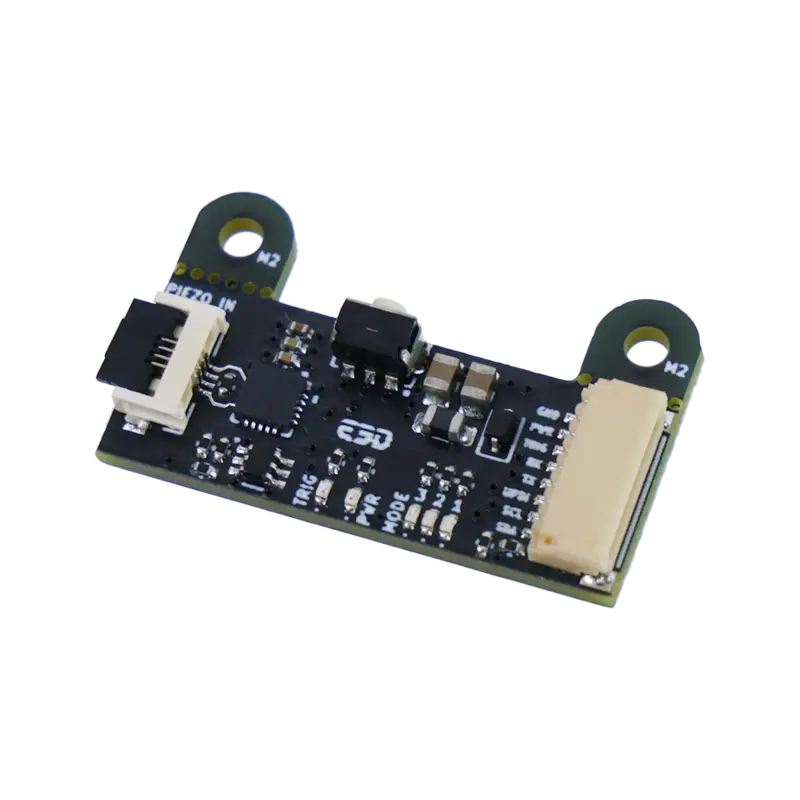

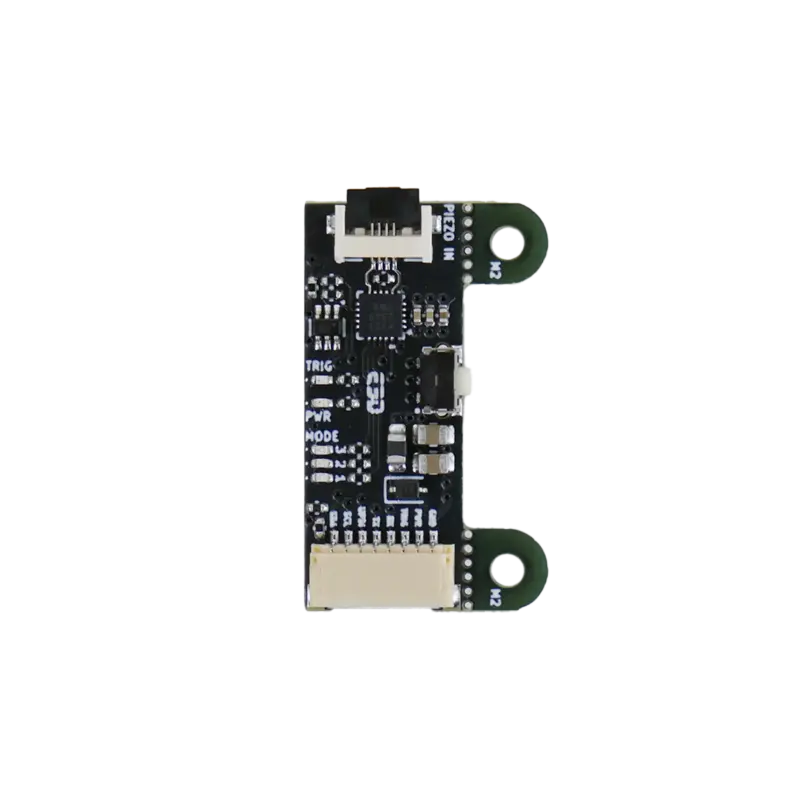

• 1 x PZ Probe Board
• 1 x Extension cables

Technical Details:

• Filament Diameter: 75 mm
• Maximum ambient temperature: 75°C
• Max. supply voltage: 5V
