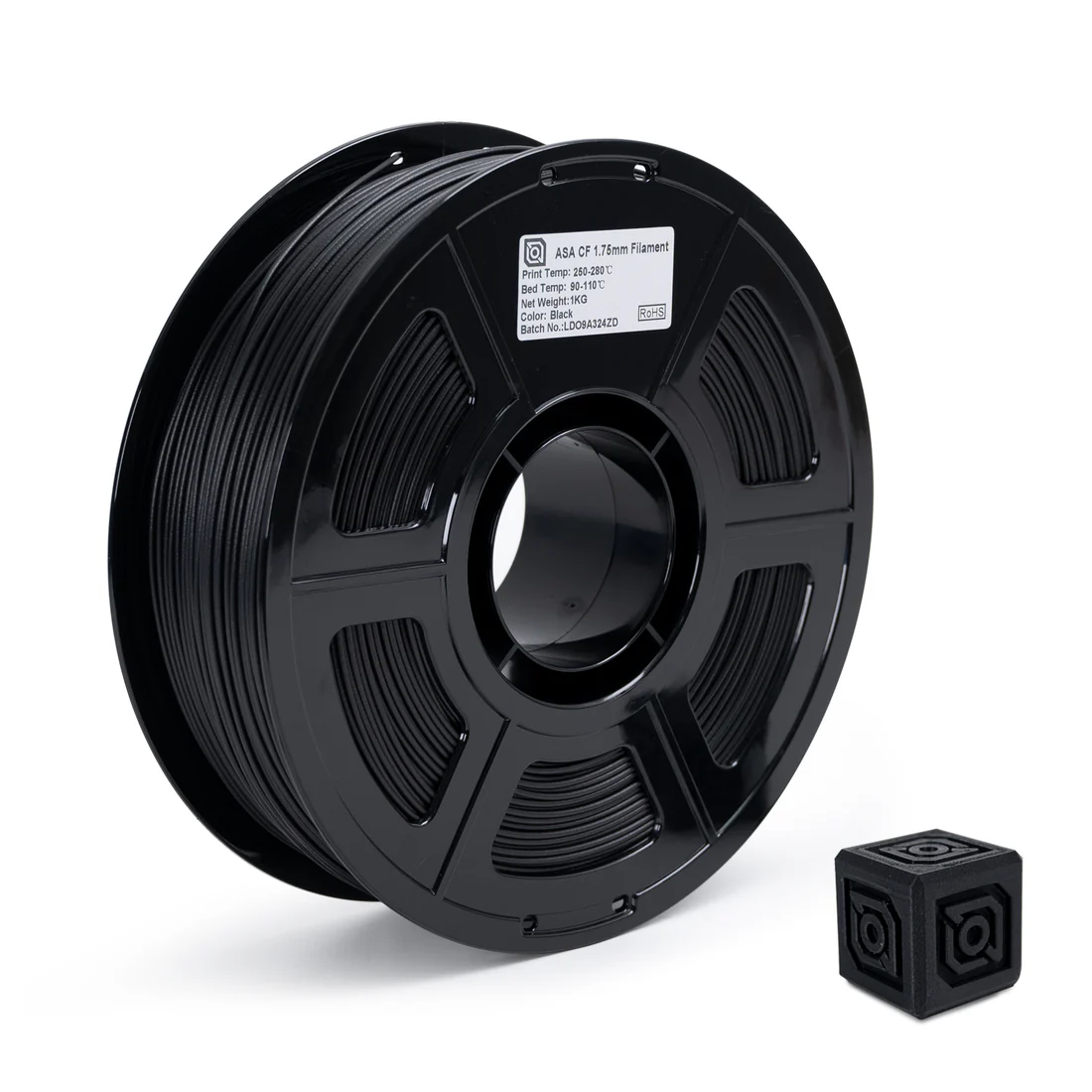

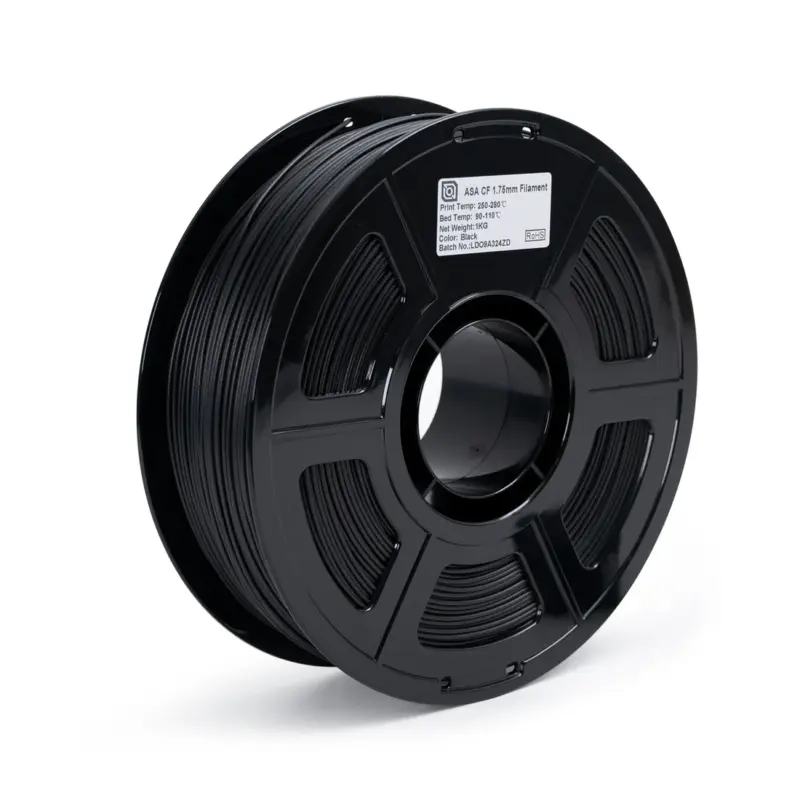

LDO ASA-CF Filament (1kg, 1.75mm)

US$31.95

1kg of 1.75mm quality ASA-CF filament from LDO for your 3D printer. Available in black, blue, white and violet.

Qty.Bulk Discount
3 - 10 15%
11 + 20%
Earn up to 18 points.

LDO ASA-CF Filament (1kg, 1.75mm) – High Performance for Professional 3D Printing

Multi-buy discounts on all LDO Filaments (across all variants)!

Introducing the LDO ASA-CF Filament, a high-performance material designed for demanding 3D printing applications. This advanced filament combines the durability of ASA (Acrylonitrile Styrene Acrylate) with the added strength of carbon fiber, making it perfect for professionals and enthusiasts seeking superior mechanical properties and top-tier print quality.

Key Features:
  • Carbon Fiber Reinforcement: Provides enhanced strength and rigidity, making it ideal for functional parts and load-bearing applications.
  • Excellent Weather Resistance: Combines UV stability and weather resistance of ASA with the robustness of carbon fiber, perfect for outdoor use.
  • UV Resistance: ASA’s anti-UV properties protect it from fading, yellowing, and degradation caused by prolonged exposure to sunlight, making it an ideal choice for outdoor products.
  • High Impact Resistance: Withstands significant stress and impact, ensuring long-lasting durability.
  • Anti-Aging Properties: Testing shows that ASA’s anti-aging performance is over 10 times better than ABS, making it far more durable in challenging environmental conditions.
  • Superior Layer Adhesion: Minimizes warping and shrinkage for reliable, high-quality prints.
  • Weather Resistance: ASA resists damage from high temperatures, oxidation, and atmospheric conditions, extending its lifespan in outdoor environments.
  • Smooth Matte Finish: Offers a professional-looking surface that requires minimal post-processing.
Specifications:
  • Material: ASA-CF (Acrylonitrile Styrene Acrylate with Carbon Fiber)
  • Diameter: 1.75mm
  • Weight: 1kg spool
  • Recommended Printing Temperature: 240 – 260°C
  • Bed Temperature: 80 – 110°C

Why Choose LDO ASA-CF Filament? LDO ASA-CF Filament stands out for its exceptional strength and weather resistance, making it the go-to choice for high-performance 3D printing projects. Whether you’re working on functional prototypes, outdoor parts, or any application requiring enhanced mechanical properties, this filament delivers the robustness and quality you need.

ASA Carbon Fiber is a high-performance engineering plastic that combines the benefits of ASA’s weather resistance and mechanical strength with the added durability of carbon fiber reinforcement. ASA is already known for its excellent resistance to UV radiation, making it suitable for outdoor applications where materials are exposed to direct sunlight. The carbon fiber reinforcement further enhances its structural strength, stiffness, and dimensional stability.

Technical Data Filament
  • 3D Printing Filament material:  ASA-CF
  • Diameter (mm): 1.75 +/- 0.03mm
  • Suggested printing speed: 30 – 100mm/s
  • Net Weight: 1KG/Roll
  • Print Temp (°C): 260
  • Bed Temp (°C): 80-110
  • Chamber temp (closed chamber necessary): 50 – 70C
Spool Dimensions:
  • Width (mm): 60
  • Outer Diameter (mm): 195
  • Inner Diameter (mm): 55
  • May come on plastic or cardboard spool

Looking for a good filament storage box? We can recommend this one (Amazon affiliate link):

Filament storage box



PropertyUnitTest StandardTypical Value
Densityg/m3ISO 11831.1
Melt Flow Index (220°C,10Kg)g/10minISO 113318
Melting Point°CDSC215
Tensile Strength at YieldMPaISO527-2/5060
Tensile Strain%ISO527-2/5015%
Bending StrengthMPaISO17878
Flexural ModulusMPaIS01782580
Notched Izod ImpactKJ/m?ISO180-A13
Shrinkage Rate%ISO294-40.2-0.4
Carbon Fiber Content Rate%15

Order Now and Experience the Difference!

Additional information

Weight1.35 kg
Dimensions25 × 25 × 10 cm
