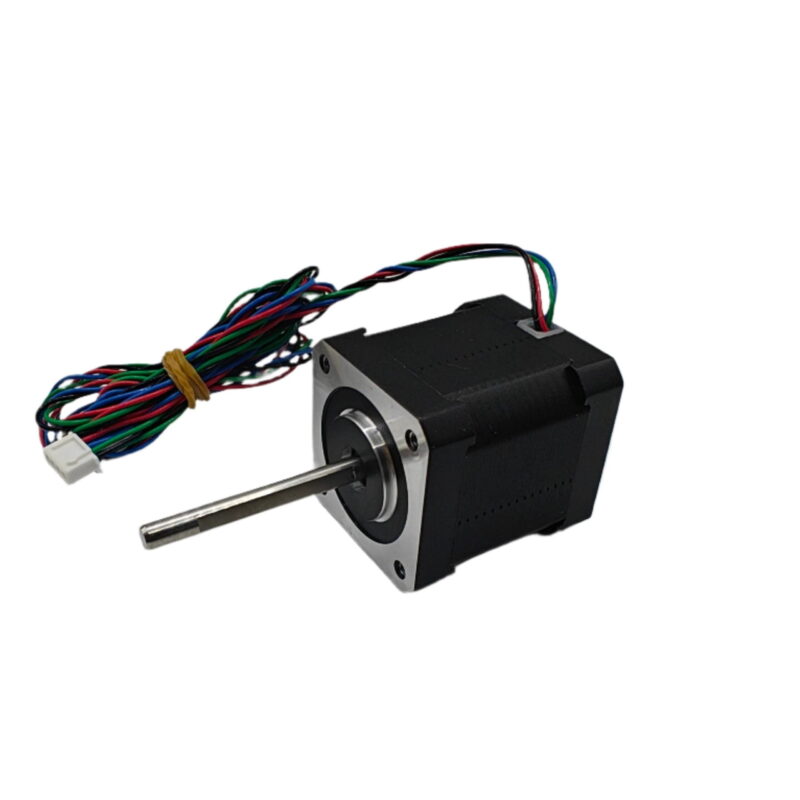

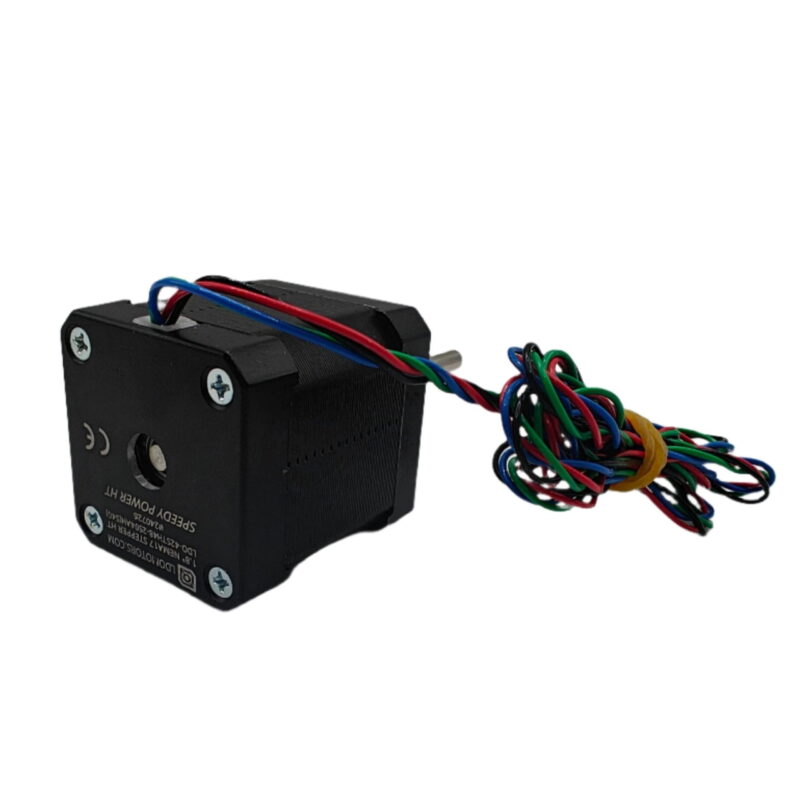

LDO Stepper Motor 42STH48-2504AH(S46) – Speedy Power

The LDO Stepper Motor 42STH48-2504AH(S46) is a NEMA 17 stepper motor which offers a 1.8 degree step angle and high torque with a 48mm body length. It includes 1m of PVC wire terminated with a 4 pin JST-XH connector.

Well suited for high performance printing with your Voron printer!

This is the 46mm shaft version!

Technical Specifications:

• Step Angle: 1.8 degrees
• Shaft Diameter: 5mm
• Rated Current: 2.5A
• Holding Torque: 5.5 kg/cm
• Weight: 350g
• Wiring: Included – 1M – JST-XH (4 Pin) – PVC
• High-temperature version

Datasheet: LDO-42STH48-2504AH(S46)_RevA
