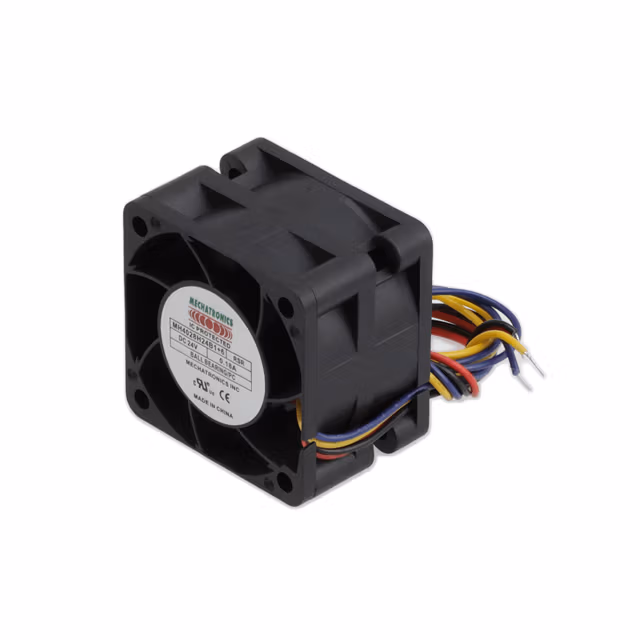

Mechatronics 4028 24V Fan (MH4028H24B1+6-RSR)

Tubeaxial 4028 24V fan from Mechatronics. Part of the Nevermore Mini Basic Kit.

Technical Data:

• Fans: DC Brushless Fans (BLDC)
• Mfr: Mechatronics Fan Group
• Series: MH4028
• Voltage – Rated: 24VDC
• Size / Dimension: Square – 40mm L x 40mm H, Width: 28.00mm
• Air Flow: 21.12 CFM (0.6m³/min)
• Static Pressure: 0.88 inH2O (22.35 mmH2O)
• Bearing Type: Ball
• Fan Type: Tubeaxial
• Features: Auto Restart, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP)
• Noise: 52.0dB(A)
• RPM: 13000 RPM
• Termination: 4 Wire Leads (24VDC, GND, Speed, PWM)
• Approval Agency: cUL, TUV, UL
• Weight: 40g
• Current Rating (Amps): 0.18A
• Material – Frame: Polybutylene Terephthalate (PBT)
• Material – Blade: Polybutylene Terephthalate (PBT)

Pin Out

The fan uses the default PWM fan pinout, blue for the PWM signal, yellow for the tach signal, red for +24V and black for GND
