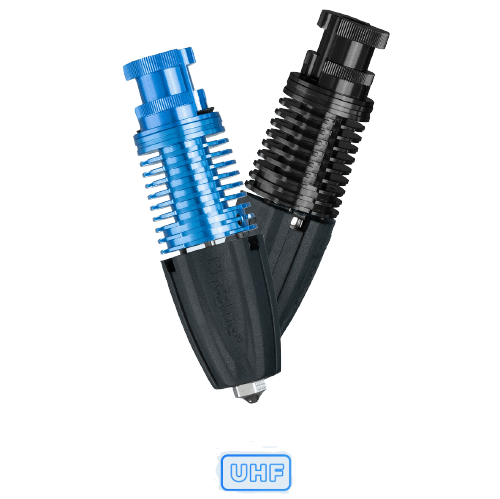

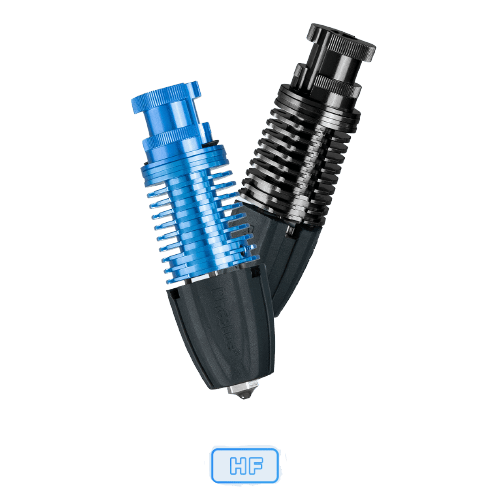

Phaetus Rapido Hotend
The Phaetus Rapido Hotend features:
- New heatblock design features a larger melt zone to suit the demands of high speed and high temperature printing.
- Evenly heated thanks to cylindrical ceramic heating unit
- Integral frame rigid structure of titanium alloy screws makes a lower heat conductivity possible, and enables an one-handed nozzle change.
- Thin-walled heatbreak: eliminating heat creep and clogging, while realizing an excellent thermal insulation.
- Unique structure design makes fast switching between high flow and ultra-high flow printheads possible.
- Interchangeable design of different types of nozzles suit the demands of high temperature and fiber filaments printing
Product Details
| Nozzle Diameter: | HF: Plated copper 0.4/1.75mm, Hardened steel 0.4/1.75mm UHF: Plated copper 0.4/1.75mm, Volcano Plated Copper 0.6/1.75mm |
| Size: | 24.0mm*75.0mm |
| Material Processes: | Aluminium heatsink Plated copper heat block |
| Heat Cartridge: | Ceramic heating element |
| Thermistor: | 1O4NT-4-R025H42G / Element’s maximum heat resistance: 290°C |
| Appearance: | Black/Blue |
| Net Weight: | HF: 50.50g/ UHF: 53.65g |
| Applicable Materials: | Compatible with all thermoplastic filaments, including but not limited to typical composite fiber filaments such as PLA, ABS, PETG, TPU, PP, PA, and PLA-CF, ABS-CF, PETG-CF, PA-CF/GF, as well as composite filaments such as steel, wood, boron carbide, tungsten and fluorescence |

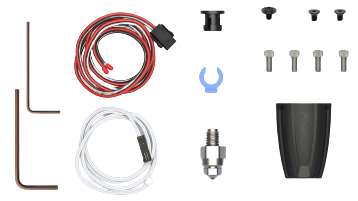

| Accessories List: | Collect Clip x 1 pcs Bowden Collect x1 pcs 1.5 Hexagon Rod x 1 pcs 2.0 Hexagon Rod x1 pcs M2.5*8.0 Hexagon Socket Head Screw x 4 pcs M2.5*5 Custom Countersunk Hexagon Socket Screw x 2 pcs M2*1.8 Custom Semicircular Head with Gasket Screws x1 pcs Black Heatblock Extension Cord (810mm) x1 pcs White Thermistor Extension Cord (910mm) x1 pcs Plated Copper Nut x 1 pcs (UHF Version Only) UHF Silicone Sock x 1 pcs (UHF Version Only) Phaetus Volcano Plated Copper Nozzle 0.6mm x1 pcs (UHF Version Only) H10.0 Open – Ended Wrench x1 pcs (UHF Version Only) |
| Adaptation Models: | Seamlessly adapted to all Prusa models Other models can be assembled with adapters |
More information (incl. product model download links) on the Phaetus Website.
