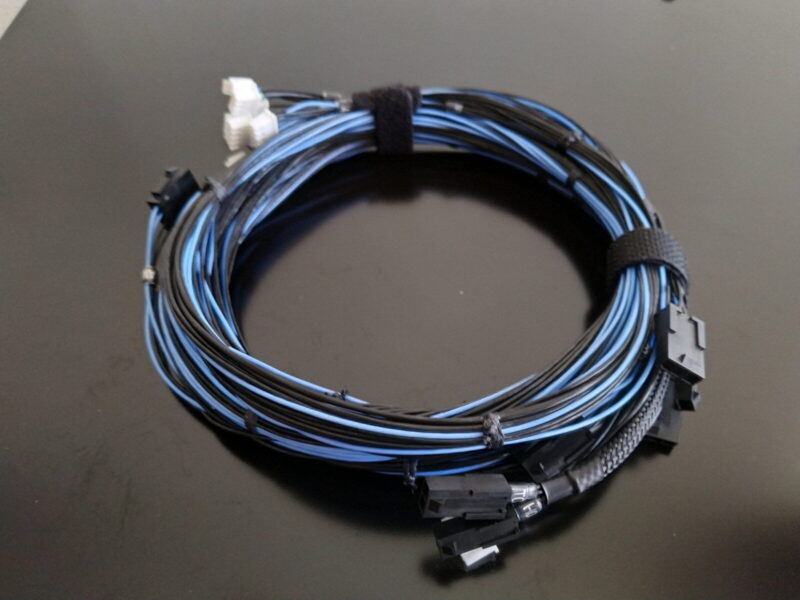

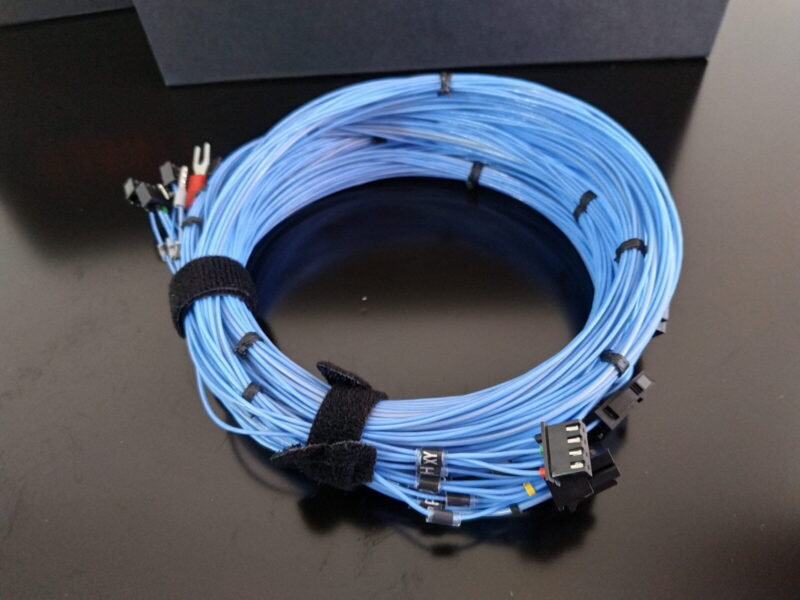

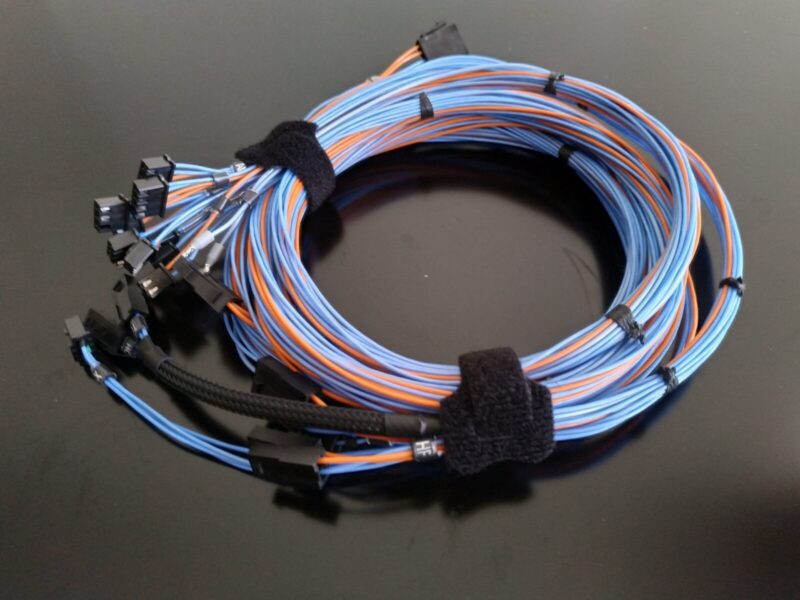

Voron 2.4 & Trident Wiring Harness (250mm2) made by LINNEO

US$127.75

Are you not really a wiring guy, don’t like crimping? Here’s the solution: the Voron 2.4 & Trident harness. Perfectly fitted for your Voron printer, made in Europe by LINNEO to highest quality standards.

Voron 2.4 & Trident Wiring Harness (250mm2) made by LINNEO

A Linneo Wiring Harness is custom made and has a dispatch time of  up to 4 weeks!

All Linneo harnesses are now Stealthburner compatible. If you order the Toolhead PCB option it will support the latest HartK Stealthburner PCB (incl. ERCF connectors). There’s also a new internal harness to wire up the LEDs!)

Are you not really a wiring guy, don’t like crimping? Here’s the solution: the Voron 2.4 & Trident harness. Perfectly fitted for your Voron printer, made in Europe by LINNEO to highest quality standards. This gives you the advantage of short delivery times but at the same time a high customisation level to match your printer configuration.

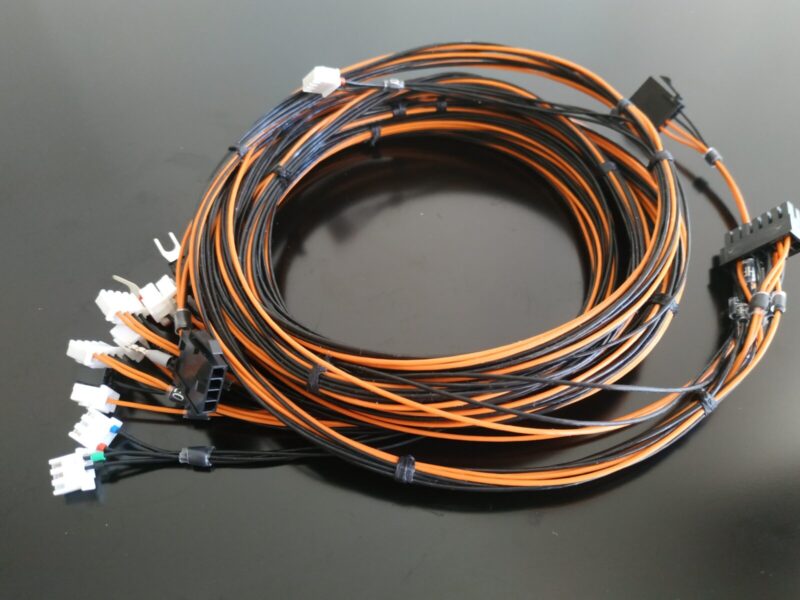

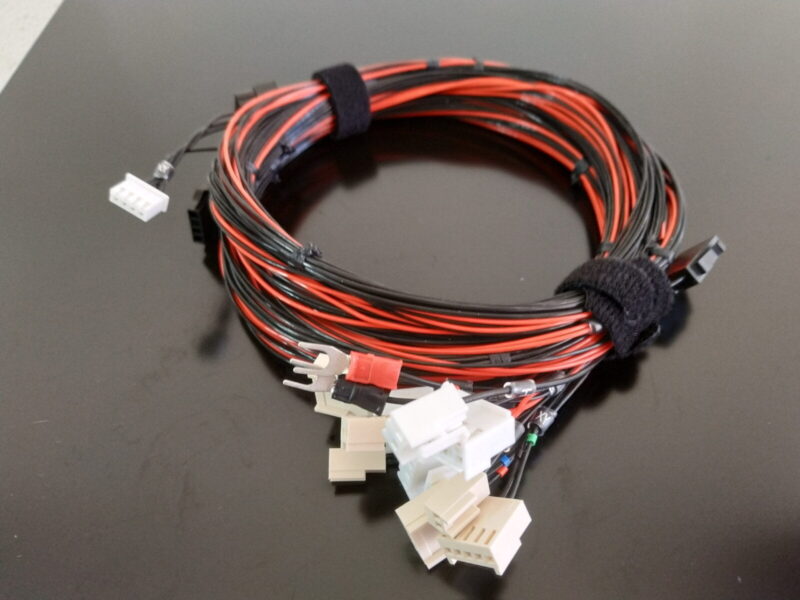

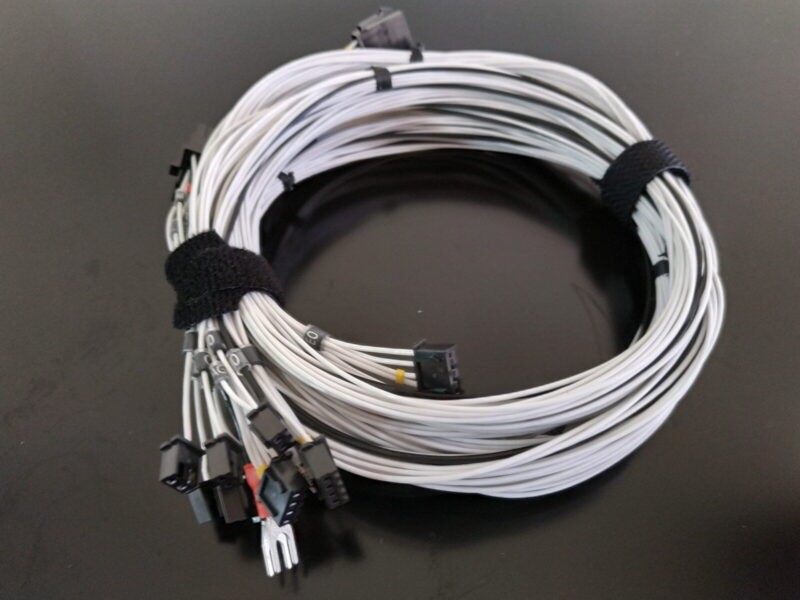

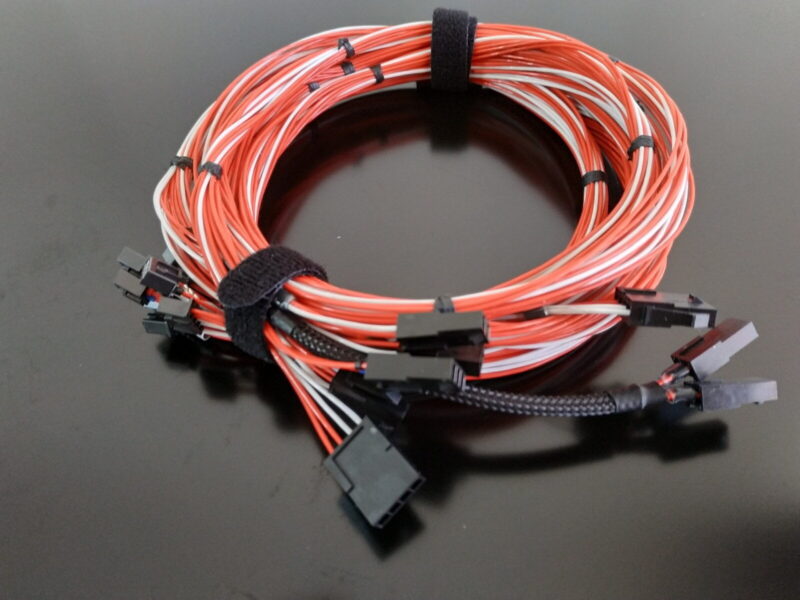

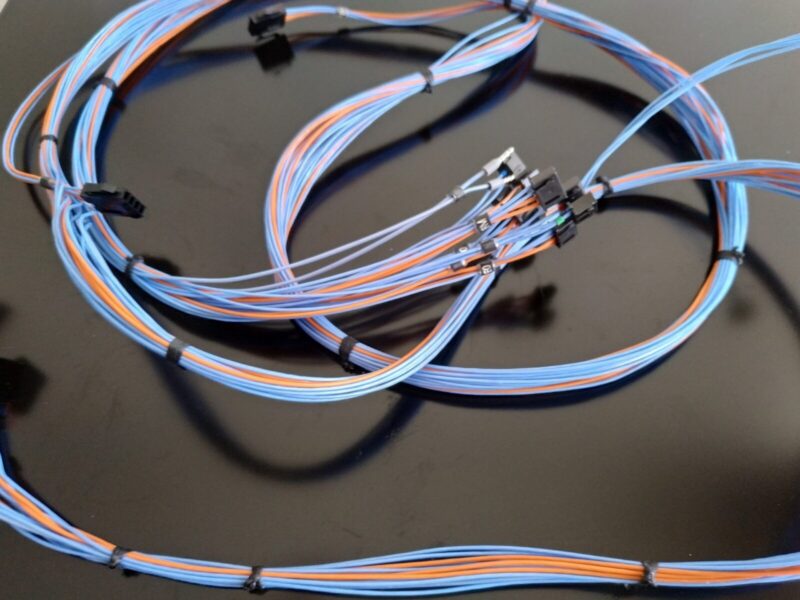

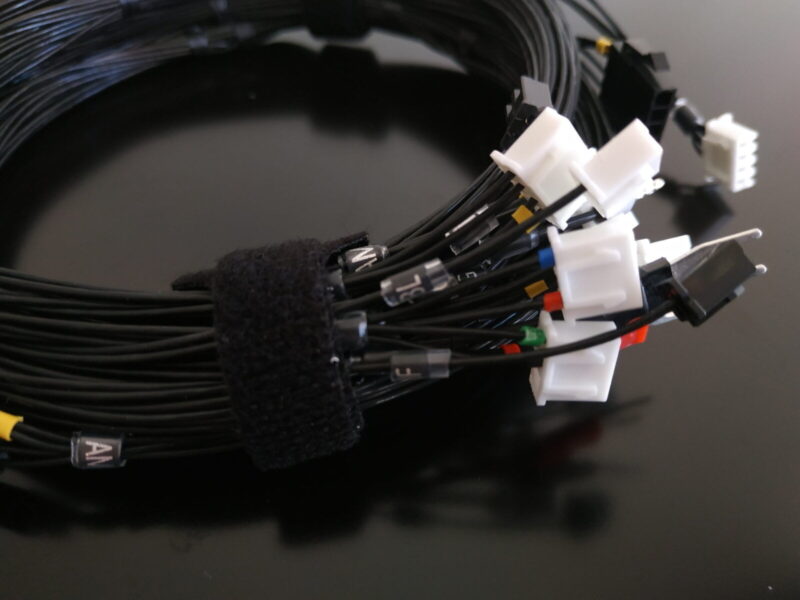

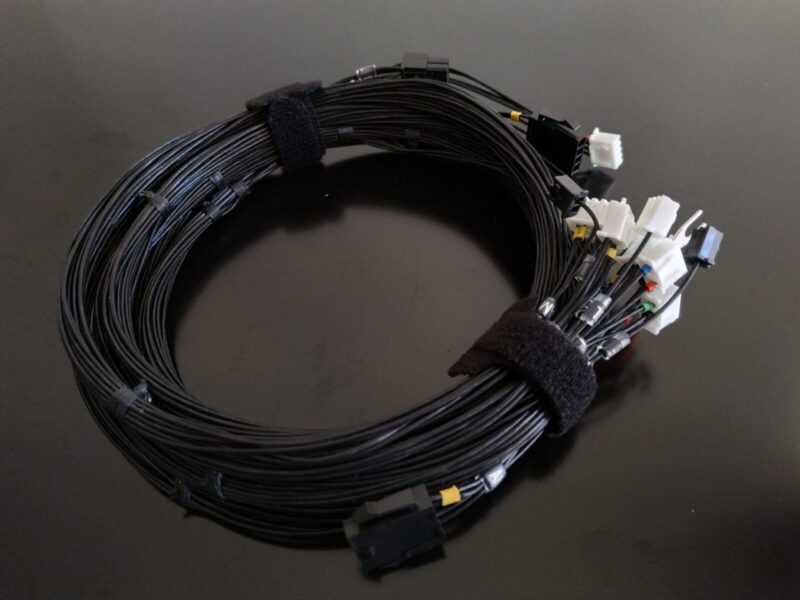

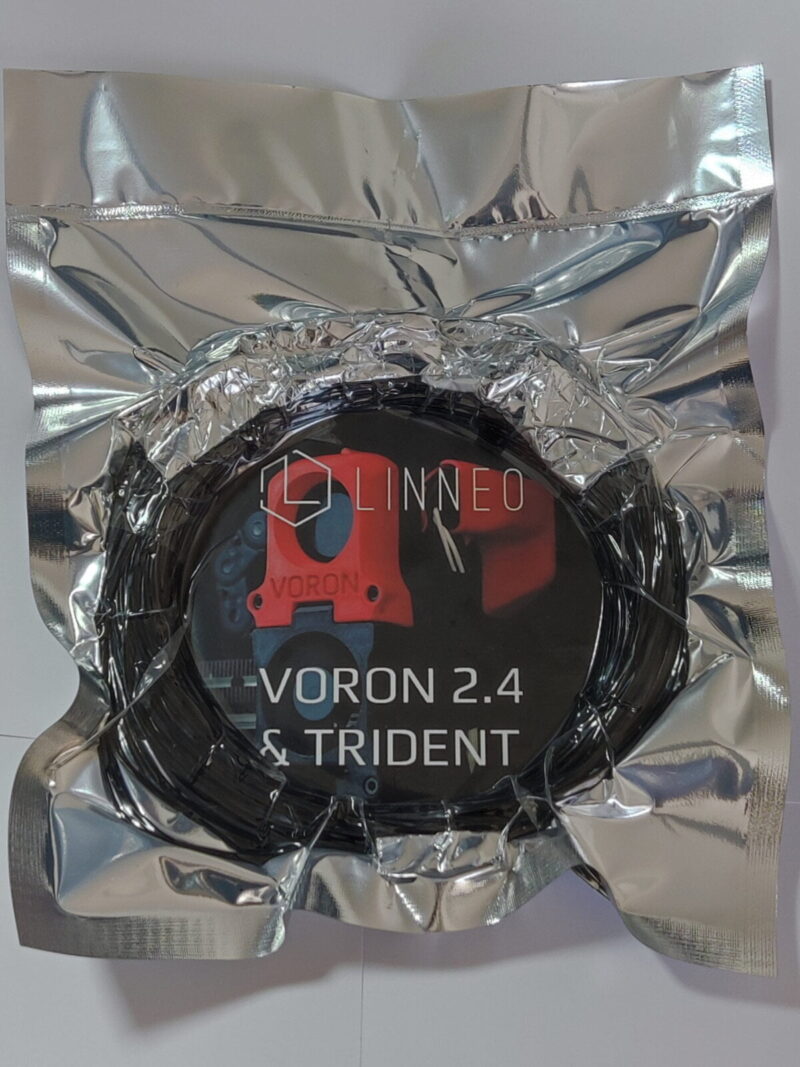

The Voron 2.4 & Trident harness is made from 0.25mm2 (0.5mm2 for heater wires) FEP cable. It is terminated with JST-type and Molex connectors and will be delivered securely packed and fully labelled. The necessary connector counter parts also included.

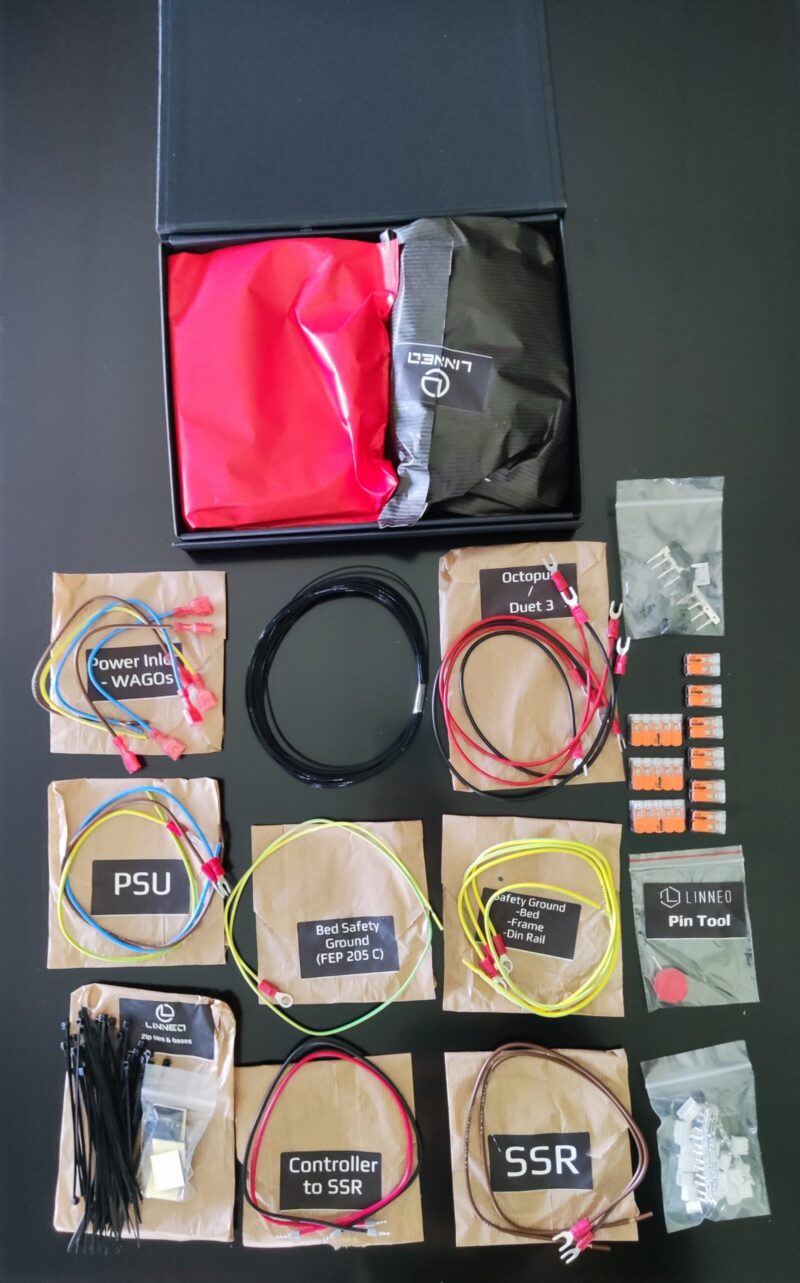

All harnesses are shipping including on top of the wiring harness itself the complete BOM wiring accessory kit which includes wire, crimps, connectors, etc. to build the remaining bits of the Voron wiring not covered by the harness itself (the under deck wiring is partially pre-crimped):
  • 5m Linneoflon 0.25mm² 24AWG wire
  • 40x “VORON size” zip ties and 5 cable bases
  • 3x Wago 221-415
  • 6x Wago 221-412
  • 1x Linneo Pin tool
  • Under the deck pre-crimped wiring kit (except the Raspberry Pi wiring): PSU, controller-to-SSR, SSR, Safety Bonding, Z Endstop cable, Power Inlet Wagos
  • JST XH extra connectors and pins (and PH2.0 if the harness is ordered to work with Stealthburner PCBs)
  • Counterpart Molex Micro-Fit 3.0 Connectors

For use with the Voron V2.4 and Trident.

You can check the FAQ section which parts of the wiring are included and how to use the harness correctly.

Please select your

  • controller board
  • use of Stealthburner Toolhead PCB

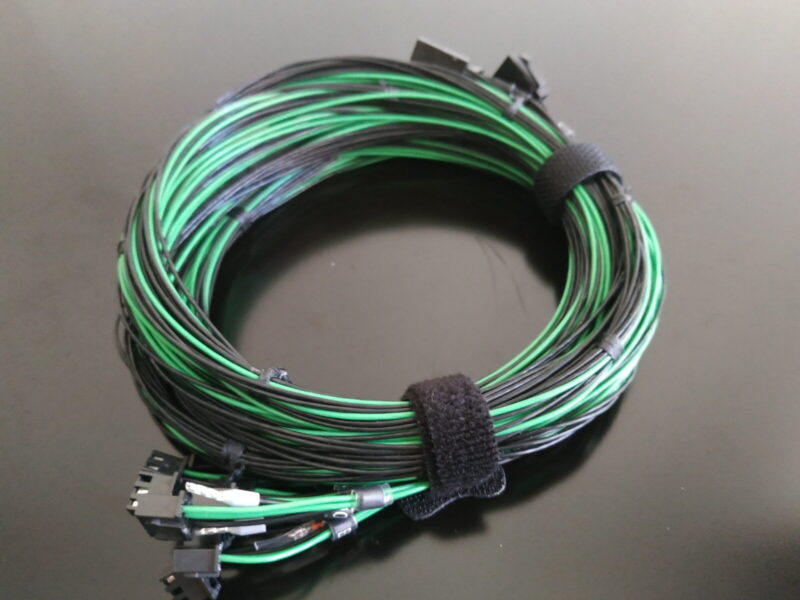

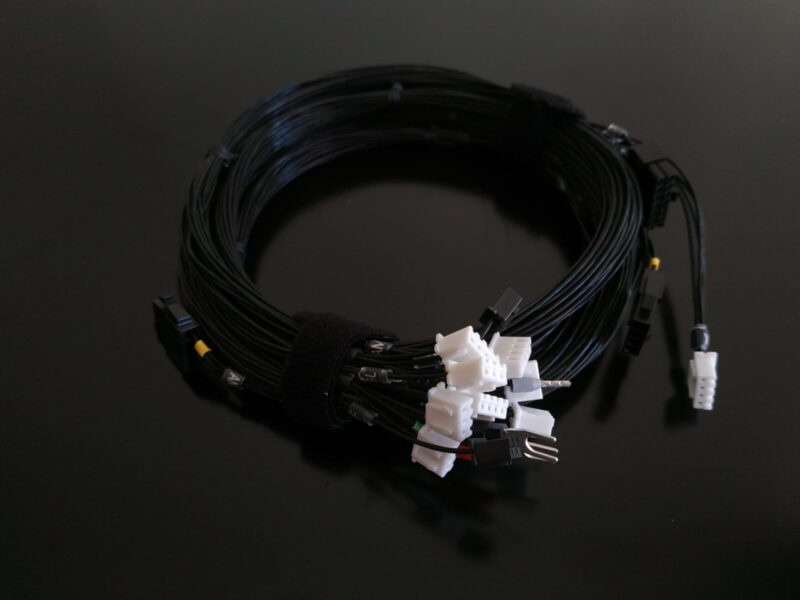

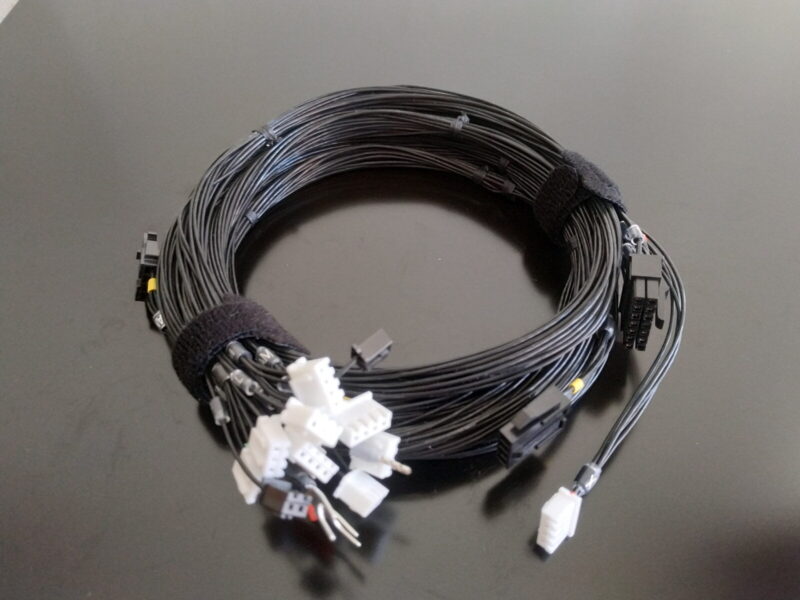

  • colour: black, white, blue or red (if you select “contrast-colour” please define which colours you want in the order remarks text field, available contrast colours are: black, white, blue, red, green, yellow and orange)

and get going 🙂

If you need any more adjustments, let us know and we can get the loom even more customised for you.

Additional information

Weight0.35 kg
Dimensions25 × 16 × 3 cm
Color

Black, Blue, Contrast – Colour, Red, White

Variant

No SB Toolhead PCB Support, SB Toolhead PCB Support

Compatibility

Octopus (Pro), SKR, Spider

Brand

Linneo
