Voron Hall Effect XY Endstop PCB (V2.0)

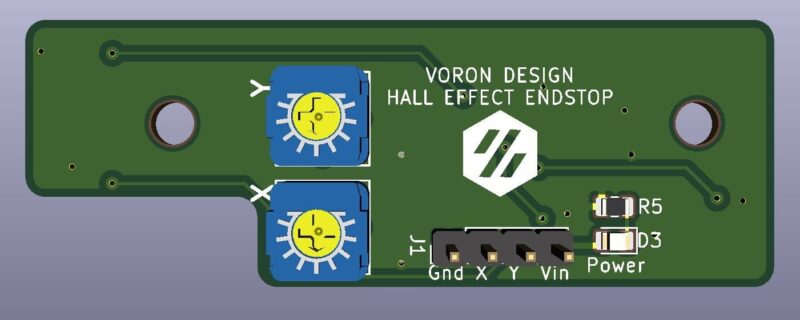

The Voron Hall Effect XY Endstop PCB (V2.0) facilitates the wiring of the XY endswitches for your Voron printer and offers you contactless switching by using hall effect sensors instead off microswitches. It comes fully assembled, so you can immidiatley use it. The only thing you’ll need to add to the printer are two neodym magnets to activate the hall effect sensors.

More information on the PCB can be found on its VoronDesign project site on GitHub.

This version 2.0 includes some changes to the PCB layout and hall-effect sensors used, to improve the sensitivity of the board.

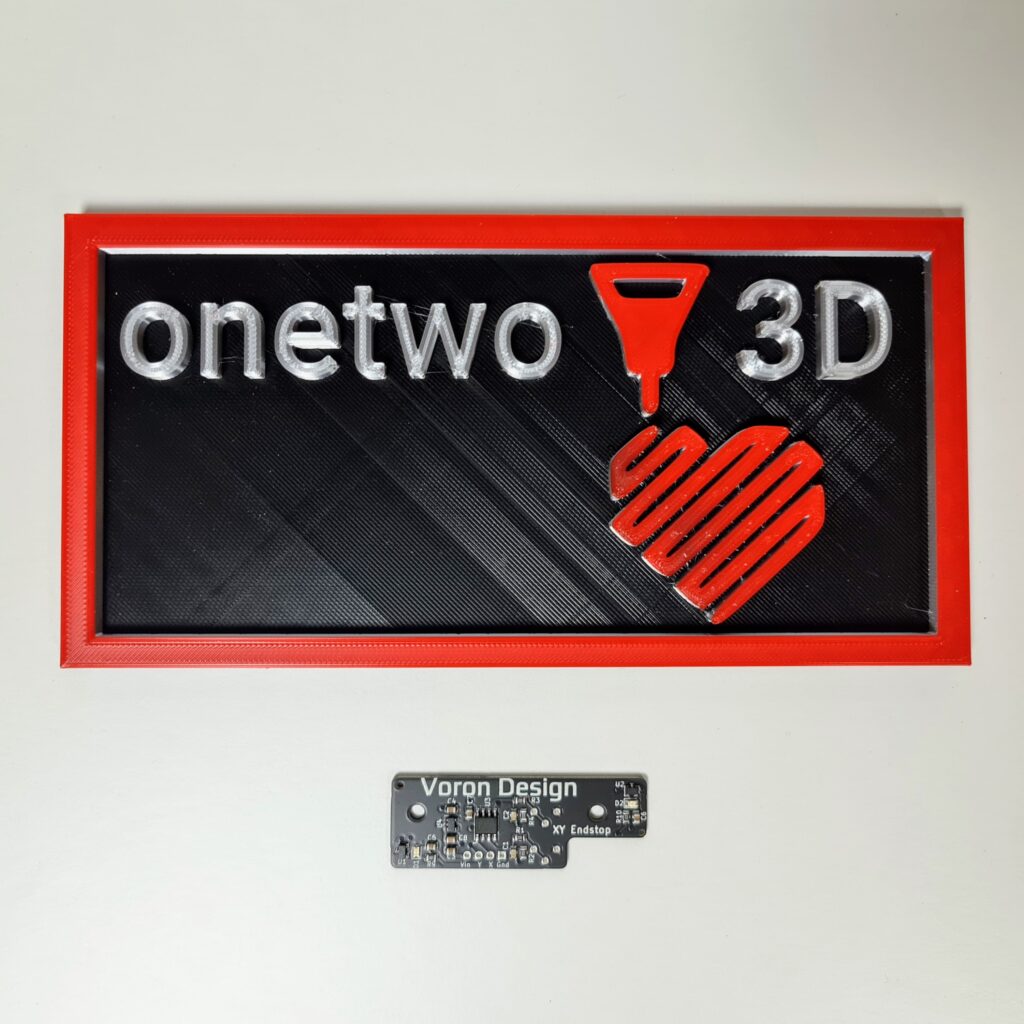

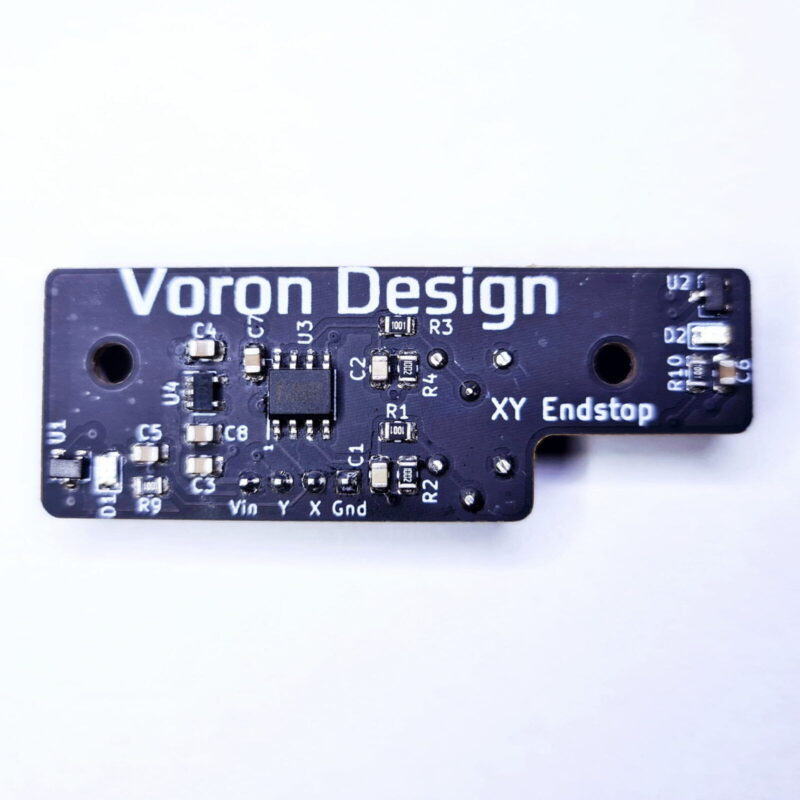

The PCB comes fully assembled with

• 2x Trim potentiometers
• 1x JST XH 2.5 90deg shrouded 4pin header
• all components soldered on, ready to use
