Voron Tap Kit (pre-wired)

The new Voron Tap by the VoronDesign Team.

What is the Voron Tap?

Voron Tap is a drop in replacement carriage for MGN-12 based Voron 2 and Trident printers.

Tap has a mechanism that allows the toolhead to push up, and this activates an optical switch.

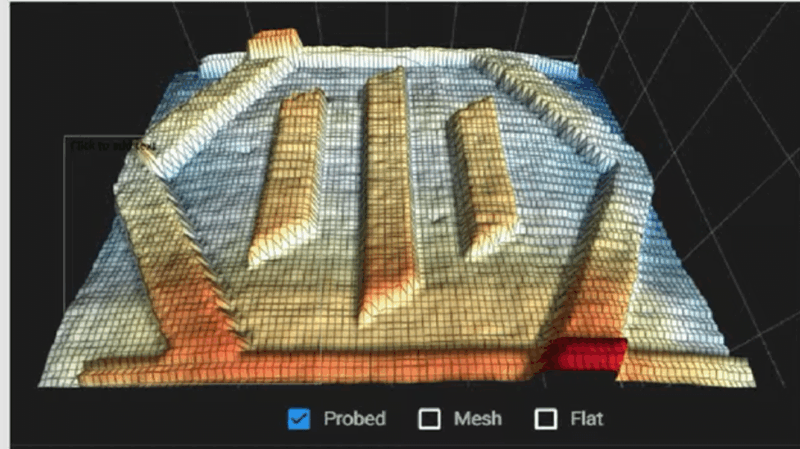

The result is you can use the nozzle as both a z-endstop and bed probe.

Reliable precision that provides great first layers.

Advantages:

No more burned out inductive probes or failing microswitches, no more re-adjustments after each nozzle change, no separate bed probe and z-endstop needed.

Our kit includes:

• 50mm MGN9H linear rail (stainless steel, medium pre-load), Info about pre-load on linear rails (why they don’t move “smooth”)
• Linneo 5V (V1 (smaller PCB), pre-wired and crimped) or 5V/24V (V2.4, with pre-crimped harness) Opto Tap PCB
• all hardware (fasteners, N52 magnets, etc.) needed (based on the latest VoronDesign BOM RC8)
• printed parts in black ABS included (optional)
• The pre-crimped cable harness is plug’n’play compatible with the HartK Stealthburner Toolhead PCB

Requirements:

The Voron Tap probe requires a Voron 2.4 or Trident (not compatible with Switchwire and 0.1!) with a Stealthburner toolhead, compatible extruder (e.g. CW2, Bondtech LGX, etc.), 5V supply available at the toolhead (for the 5V PCB version) and a MGN12H linear x-rail setup.

More information, STLs, technical date, etc. on GIT

Here a video with the probe in action (thanks to Jon#4961 on Discord):

And here the VoronLive video with all the technical details:

And last but not least a great assembly & installation video by SteveBuilds:
