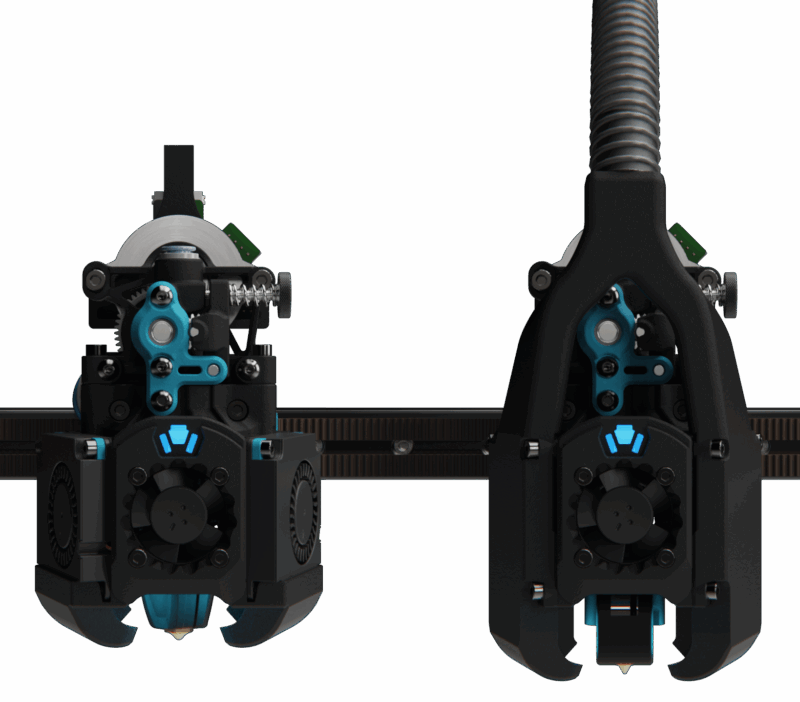

XOL Toolhead Kit

The Xol Toolhead is the evolution of ‘Mantis Xol 2. Aimed at modularity and quality of life improvements for installation and serviceability.
They have left the Mantis carriage behind, and thus are now just Xol sans Mantis. Don’t worry, it’s still a bit ugly. They wouldn’t fix that.

The Xol Toolhead kit contains all the hardware, fans/blowers and a 5V buck converter needed to build the toolhead based on the BOM published here. If you just require the fasteners, please have a look here.

Content:

• 1x 5V K78L05-500R3 DC/DC converter
• 2x Delta 4010 Blower (BFB0405HHA-A)
• 1x Delta 2510 Hotend Fan (ASB02505SHA-AY6B)
• 10x M3 Heatset Insert (M3xD5.0xL4.0)
• 15x M3 x 8mm SHCS
• 10x M3 Hex Nut
• 2x M3 DIN9021 flat washer
• 2x M3 x 30mm Pin (stainless steel)
• 2x 1.8mm wide cable tie
• 2x M3 x 20mm Metal Stand-off
• 2x M3 x 20mm SHCS
• 6x M3 x 16mm SHCS
• 4x M3 x 6mm BHCS
• 4x M2.5 x 16mm SHCS
• 12x M2.5 x 8mm SHCS
• 1x Short PTFE tube (10cm, 4mm OD)
• 2x M2 x 10mm self tapping screw

The full documentation is available on GIT.
