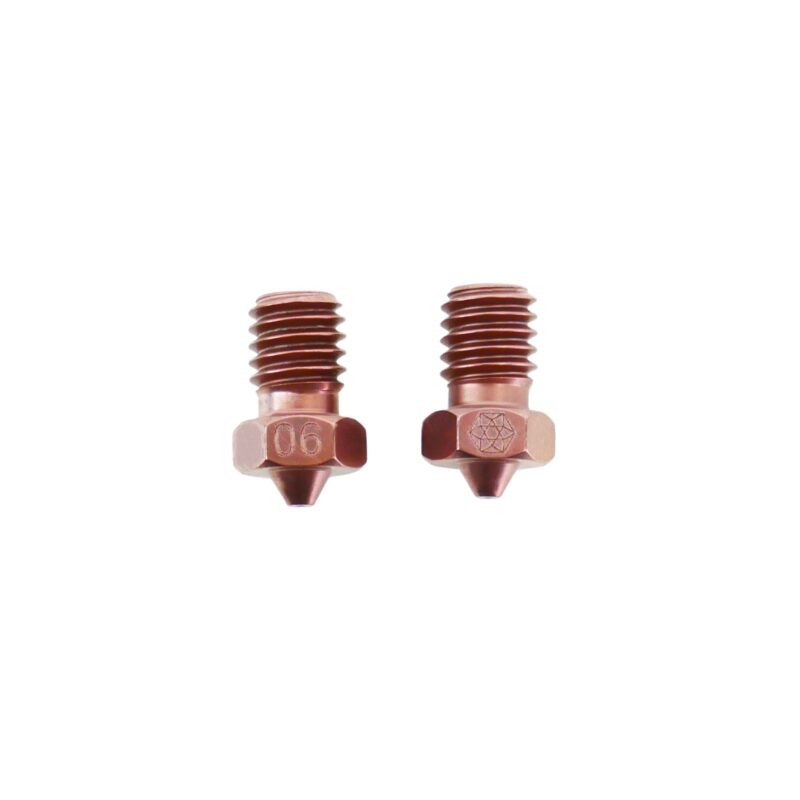

Zodiac by E3D Nozzles

Zodiac by E3D Nozzles

A premium nozzle choice, both CRB and Pro Zodiac nozzles are manufactured from hardened tool steel with a special bi-layer coating. Designed for use with:

• V6 compatible heater blocks
• Volcano compatible heater blocks
• Creality MK8 compatible hotends
• Raise3D Pro3 series, Pro2 series and E2 printers

CRB

CRB nozzles are designed with great wear resistance and reduced filament build-up on the nozzle. This means they can withstand extended use without showing significant signs of wear, and they are less prone to filament sticking or accumulating on the nozzle surface. CRB nozzles are rated to handle temperatures up to 300°C, making them suitable for a wide range of materials commonly used in 3D printing.

Pro

Pro nozzles, as the name suggests, offer even higher wear resistance compared to CRB nozzles and are designed to withstand temperatures of up to 450°C, allowing for the printing of high-temperature materials that require elevated extrusion temperatures.

Key Features

CRB

• Base material: Hardened tool steel
• Coating: Zodiac BI-Layer
• Coating hardness:  2900 HV ± 500
• Maximum temperature: 300°C

Pro

• Base material: Hardened tool steel
• Coating: Zodiac BI-Layer
• Coating hardness:  3500 HV ± 500
• Maximum temperature: 450°C
